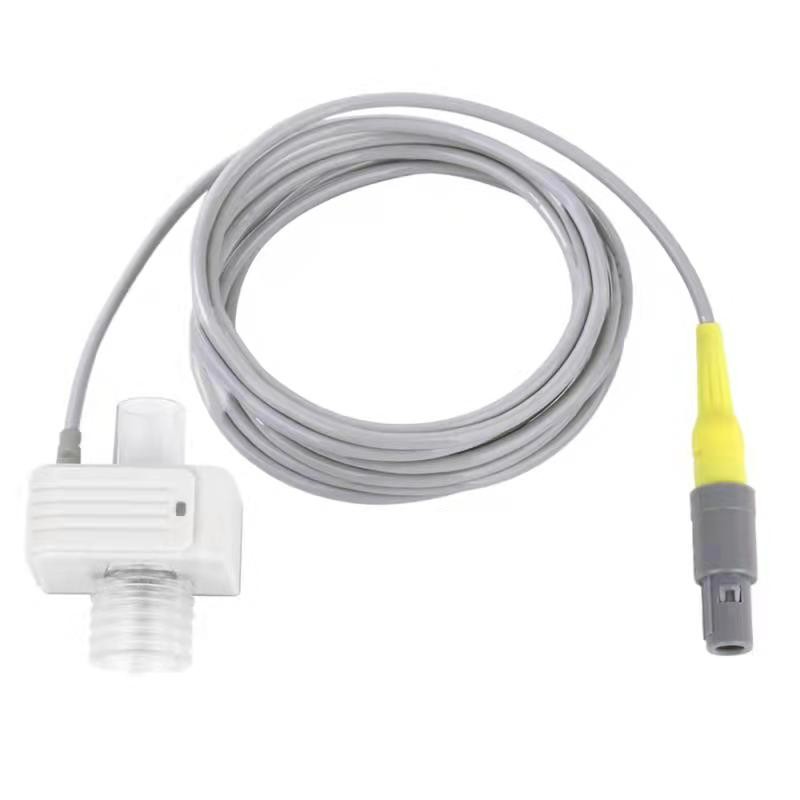

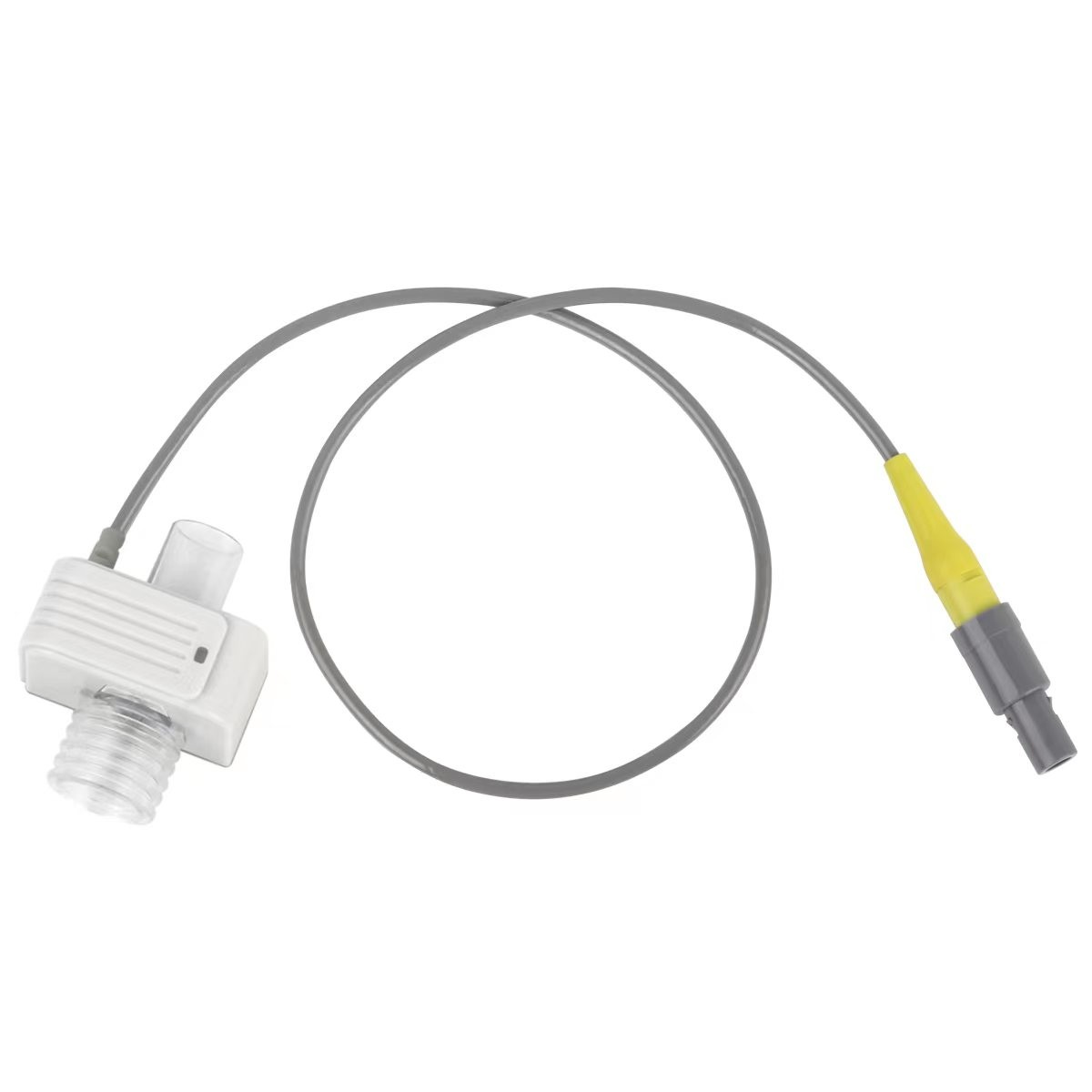

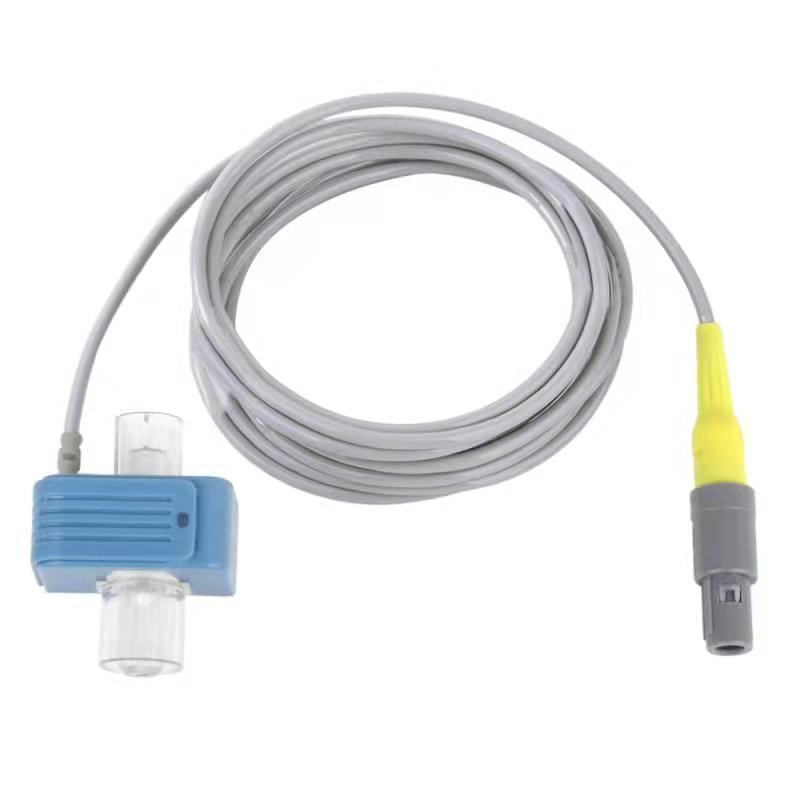

UN900 mainstream ETCO2 module is an ideal solution for carbon dioxide monitoring. It is plug-and-play, and the sensor utilizes advanced technology to measure instantaneous carbon dioxide concentration, respiratory rate, end-tidal carbon dioxide concentration, and inspired carbon dioxide concentration. With patented technology, it offers better resistance to vapor interference, resulting in more accurate measurements.
Application Scenarios
1. Monitoring the respiratory status of pets
2. Assisting doctors in determining when to initiate and discontinue mechanical ventilation
3. Verifying and confirming the correct placement of the endotracheal tube
4. Providing timely alarms in case of accidental extubation
5. Helping to confirm accidental disconnection of the ventilator circuit
6. Ensuring normal respiratory function during pet transfer
Performance Specifications
Measurement Principle: Non-dispersive infrared technology, fast measurement response speed
CO2 Measurement Range: 0-150mmHg; 0-19.7%; 0-20kPa
CO2 Measurement Resolution: 0.1mmHg
CO2 Measurement Accuracy:
0-40mmHg ±2mmHg
41-70mmHg ±5% of reading
71-100mmHg ±8% of reading
101-150mmHg ±10% of reading
Respiratory Rate: Measurement range: 3-150bpm; Measurement accuracy: ±1bpm
Power Requirements: 5.0 VDC±5%
